Carlisle Mini CC Starter Kit

Carlisle Mini CC Bench Torch

Item ID

[mini cc]

Overview

The Carlisle Mini CC is a totally surface mixed burner that offers a high level of versatility in the flame. This wide range of flame capabilities makes the Mini CC the perfect bench burner for beginners and experts alike.

Versions (Choose the Flame Style That Fits Your Work)

High Oxygen Bench Burner (3233.4 BTU'S)

The High Oxygen Bench Burner (3233.4 BTU'S) is suited for use with both hard and soft glass. It has been designed for increased productivity, attainable through higher flame temperatures and increased flow capabilities of gases.

Pinpoint Bench Burner

The second option, is the Pinpoint Bench Burner which produces a sharper, narrow flame with a longer focal length and superior “piercing” capabilities.

Construction and Design

Materials and heat management

The body of the mini CC is constructed of brass and has cooling fins cut into its profile to help protect the burner from heat build-up. The tube matrix, which is constructed of seven tubes, is made of stainless steel.

Stand and positioning

The stand itself is designed for ease of use and places the burner head at a 45 degree angle. The connection of the body to the stand is made with a ball joint, allowing for an increased or decreased tilt of 15 degrees and articulation. This allows the burner to have excellent positioning capabilities.

Base stability and mounting

The base also has four rubber feet to reduce the likelihood of the unit from sliding during use and features two mounting holes for permanent installations.

Fuel Use and Recommended Pressures

Fuel consumption (standard usage)

Fuel consumption based on standard usage is approximately 1.5 LPM (Liters Per Minute) of propane and 7 LPM of oxygen.

Compatible fuels

This burner may be used with oxygen and either natural gas, propane, or even hydrogen.

Recommended operating pressures

The recommended operating pressures are 2 PSI (Pounds per Square Inch) for fuel gas and 5 PSI for oxygen.

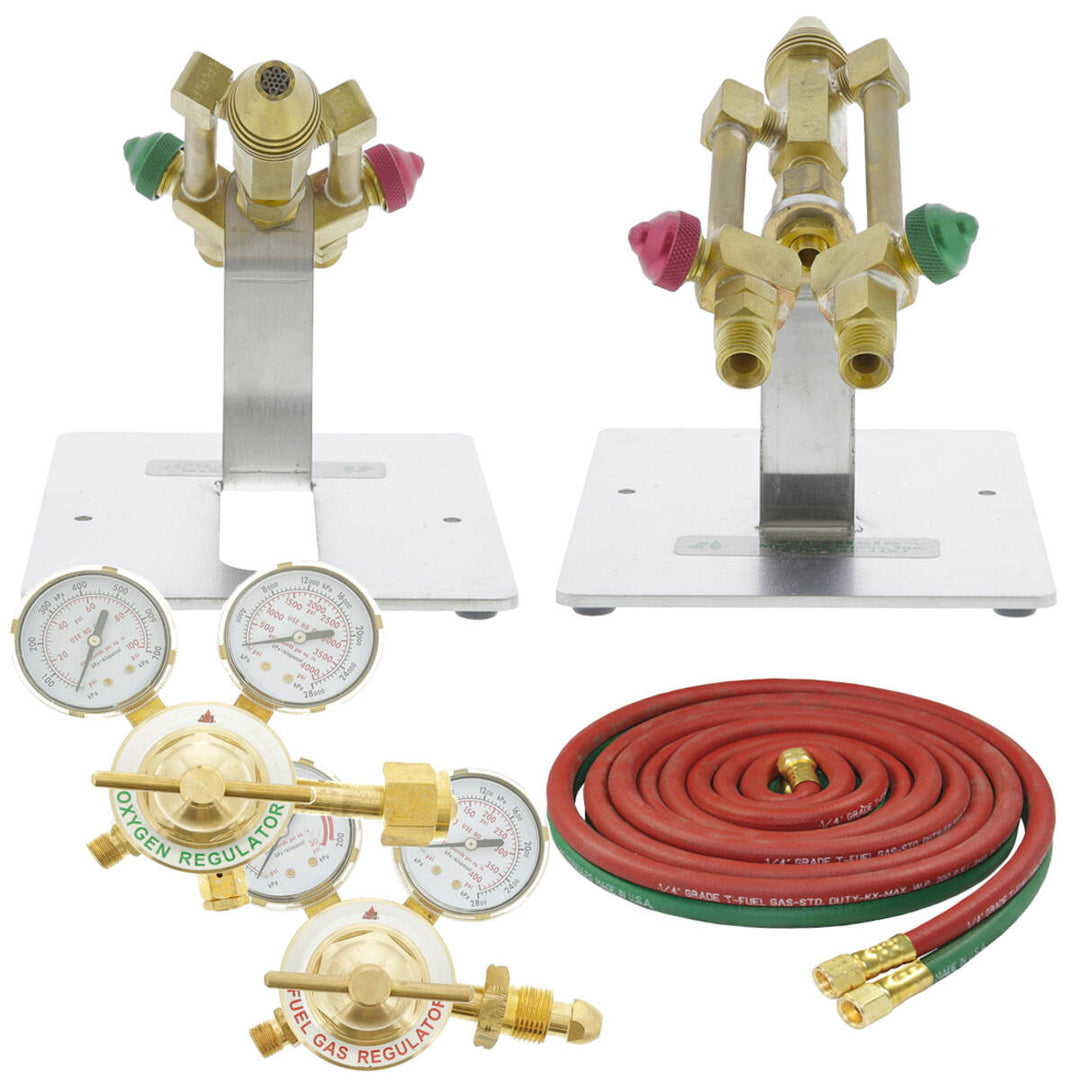

This kit includes:

• Carlisle Mini CC Bench Torch
• Oxygen Regulator
• Propane Regulator Alpha
• 12' Hose Set
• 4 Inlet to 2 Inlet Conversion Kit (4-2-Inlet-ConversionKit)

How It’s Sold

This item is sold as a kit.

*Kits are all made to order so some components may not be in stock when ordered. If you are concerned about a particular item being in stock please either check the item in question product page or contact us to confirm whether the product is in stock. We're sorry for the inconvenience but we'll do our best to make sure that you're taken care of.
