Item Name:

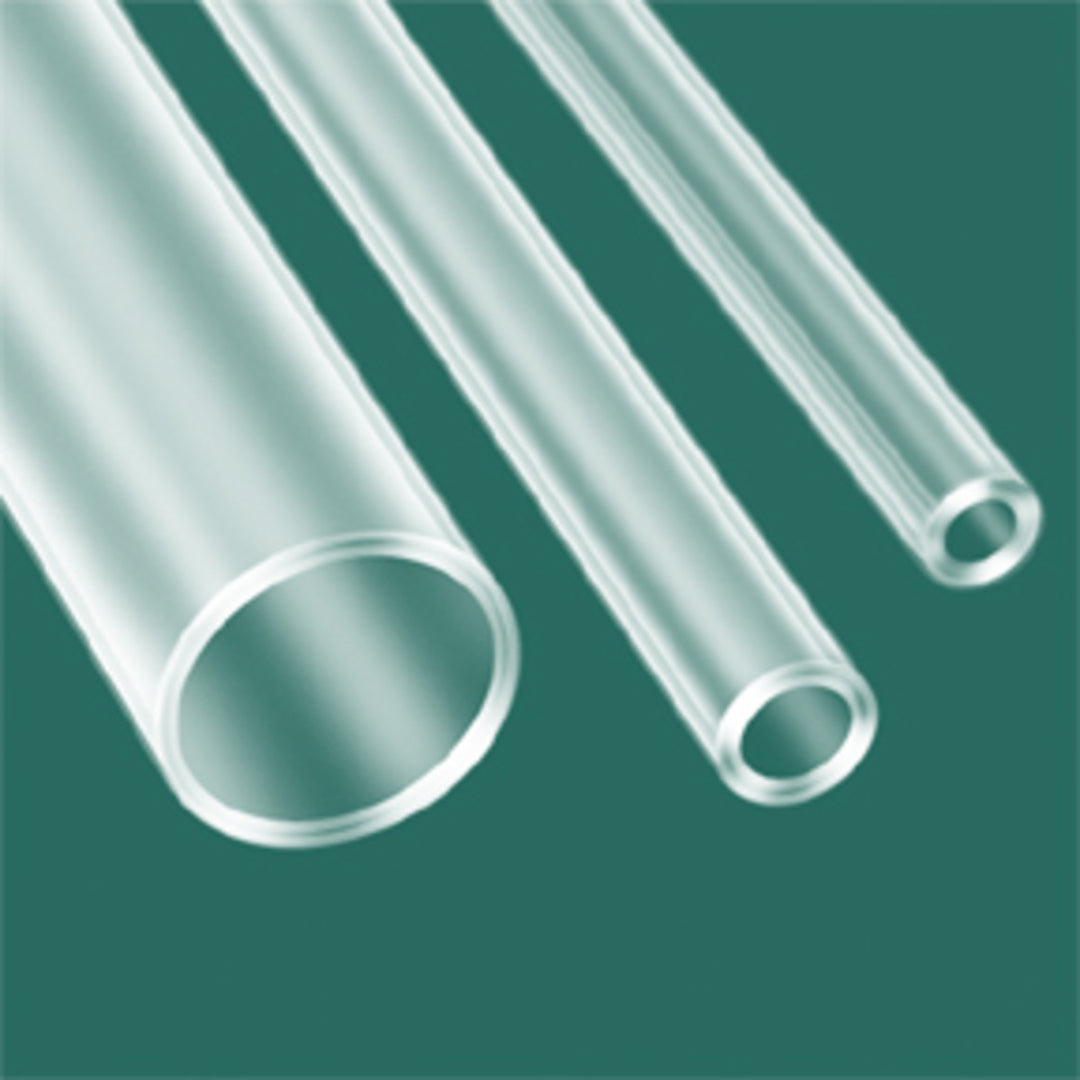

Fused Quartz Tubing - 125mm x 2.5mm
SKU:
ABRQT143
Description:
This is a piece of fused quartz tubing supplied as a straight, rigid tube. Fused quartz is used in scientific and high-heat fabrication when you need a material that tolerates very high temperatures and rapid temperature changes compared to most common glass types. This size is typically chosen for building or replacing quartz components where a large outside diameter and a thinner wall are required, such as sleeves, liners, and custom tube sections used in hot-zone assemblies where heat resistance and dimensional consistency are critical.
How it is used:
- Confirm the outside diameter and wall thickness match your build requirements before cutting or fitting.
- Cut to length using quartz-appropriate cutting and finishing methods, then finish the ends as needed for safe handling and proper fit.
- Use the tubing as a heat-resistant sleeve or structural tube in a high-temperature assembly where thermal shock resistance is important.
Dimensions
- Inner Diameter: 120.00mm
- Outer Diameter: 125.00mm
- Wall Thickness: 2.50mm
- Standard Length: 5'
