Item Name:

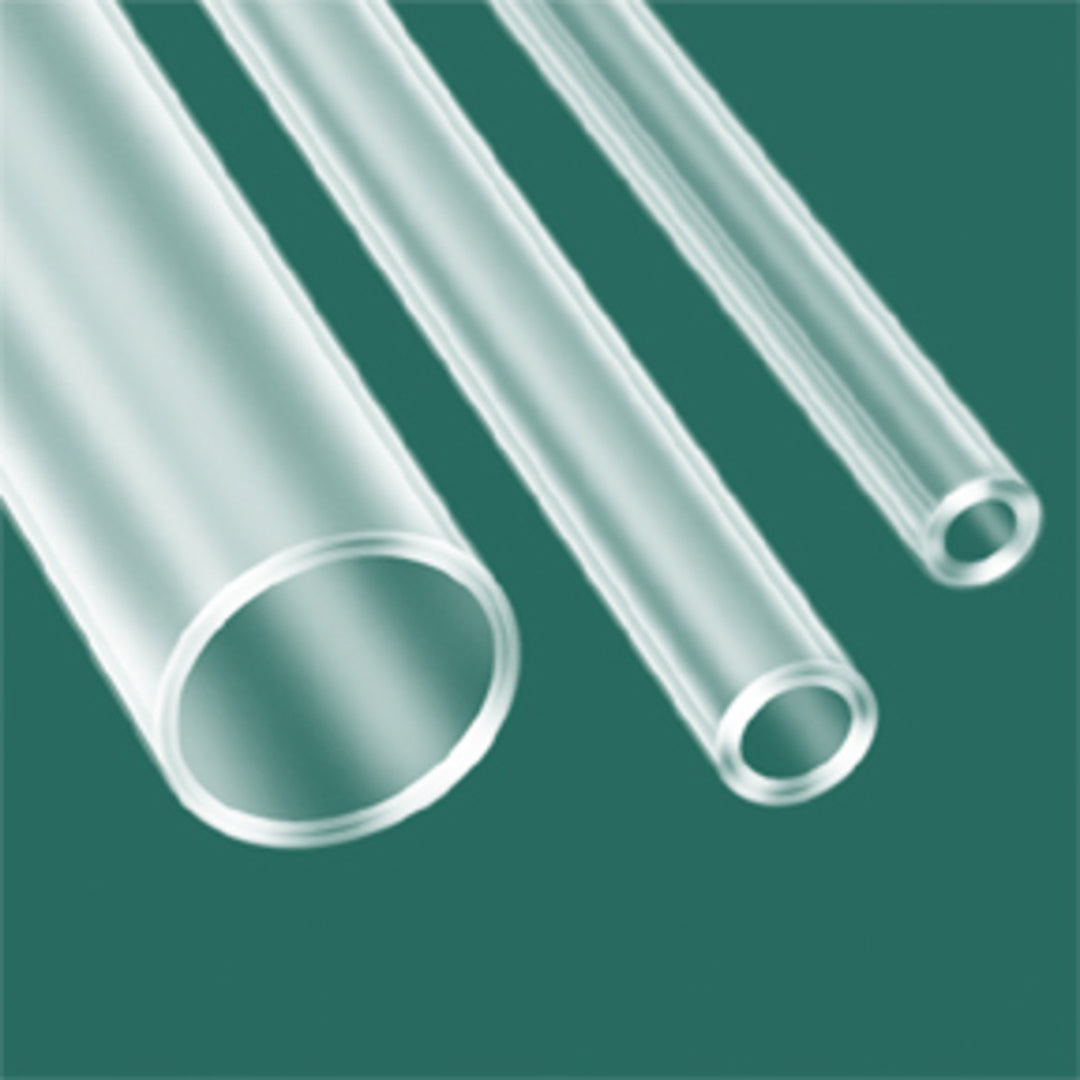

Fused Quartz Tubing - 147.7mm x 6.35mm
SKU:
ABRQT149
Description:
This is a piece of fused quartz tubing supplied as a straight, rigid tube. Fused quartz is chosen in torch and furnace-adjacent work when you need a material that tolerates very high heat and rapid temperature changes compared to most common glass types. This size is commonly selected for building or repairing quartz components where a specific outside diameter and wall thickness are required, such as high-heat sleeves, liners, or custom quartz assemblies used around burners, heaters, and other hot-zone hardware.
How it is used:
- Measure and confirm the outside diameter and wall thickness match your project requirements before cutting or fitting.
- Cut to length using appropriate quartz-capable cutting and finishing methods, then fire-polish or finish edges as needed for safe handling and proper fit.
- Use as a structural tube in a high-heat build, replacement part, or custom fabrication where thermal shock resistance and high temperature performance are important.
Dimensions
- Inner Diameter: 135.00mm
- Outer Diameter: 147.70mm
- Wall Thickness: 6.35mm
- Standard Length: 5'
