Item Name:

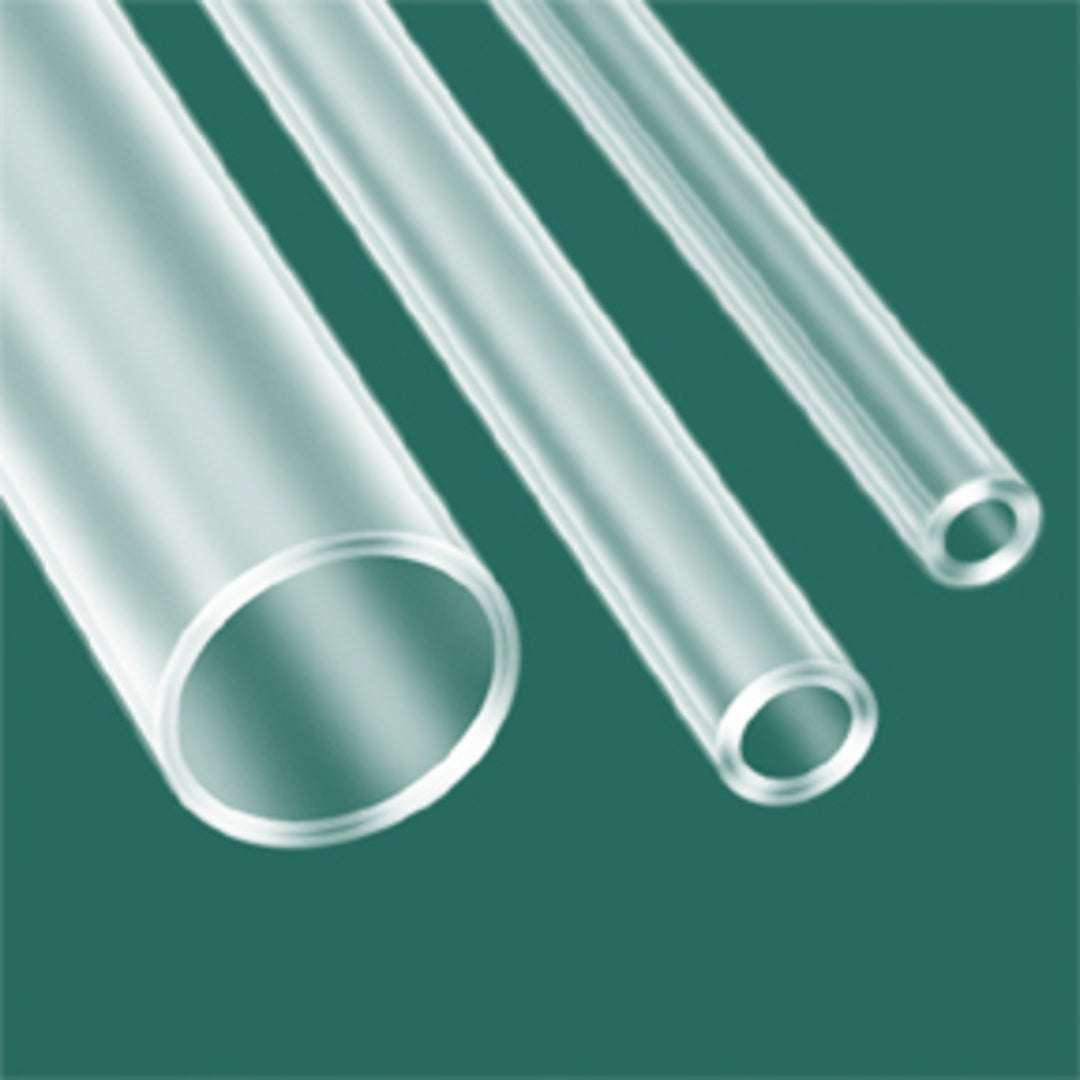

Fused Quartz Tubing - 57mm x 2mm
SKU:
ABRQT119
Description:
This fused quartz tubing is made from high-purity silica that is melted and drawn into a seamless tube with consistent wall thickness and high clarity. With a 53 mm inside diameter and a 57 mm outside diameter, it provides a large internal bore while maintaining a stout wall that holds shape well during fabrication and service. Fused quartz is used in scientific lampworking when the job demands extreme temperature capability, excellent thermal shock resistance, and low thermal expansion, especially in applications where repeated heating and cooling would stress-crack or distort other glass materials. This size is commonly selected for large process tubes, reactor and furnace components, protective sleeves, and high-heat experimental assemblies where both internal volume and dimensional stability matter. The generous I.D. also makes it practical for builds that require inserting internal parts, creating nested assemblies, or maintaining clear flow paths through the tube.
How it is used:
- Cut to length and fire-polish ends to reduce edge chipping and improve handling safety
- Used as a large-bore process tube for high-temperature scientific setups and thermal processing work
- Used as an outer sleeve or protective jacket around internal components exposed to radiant heat or direct flame
- Incorporated into custom apparatus where thermal cycling and thermal shock resistance are critical design requirements
- Worked with an oxy-hydrogen style flame for forming, sealing, and major shaping operations due to quartz’s higher working temperature
Dimensions:
- Inner Diameter: 53.00mm
- Outer Diameter: 57.00mm
- Wall Thickness: 2.00 mm
- Standard Length: 4 ft
