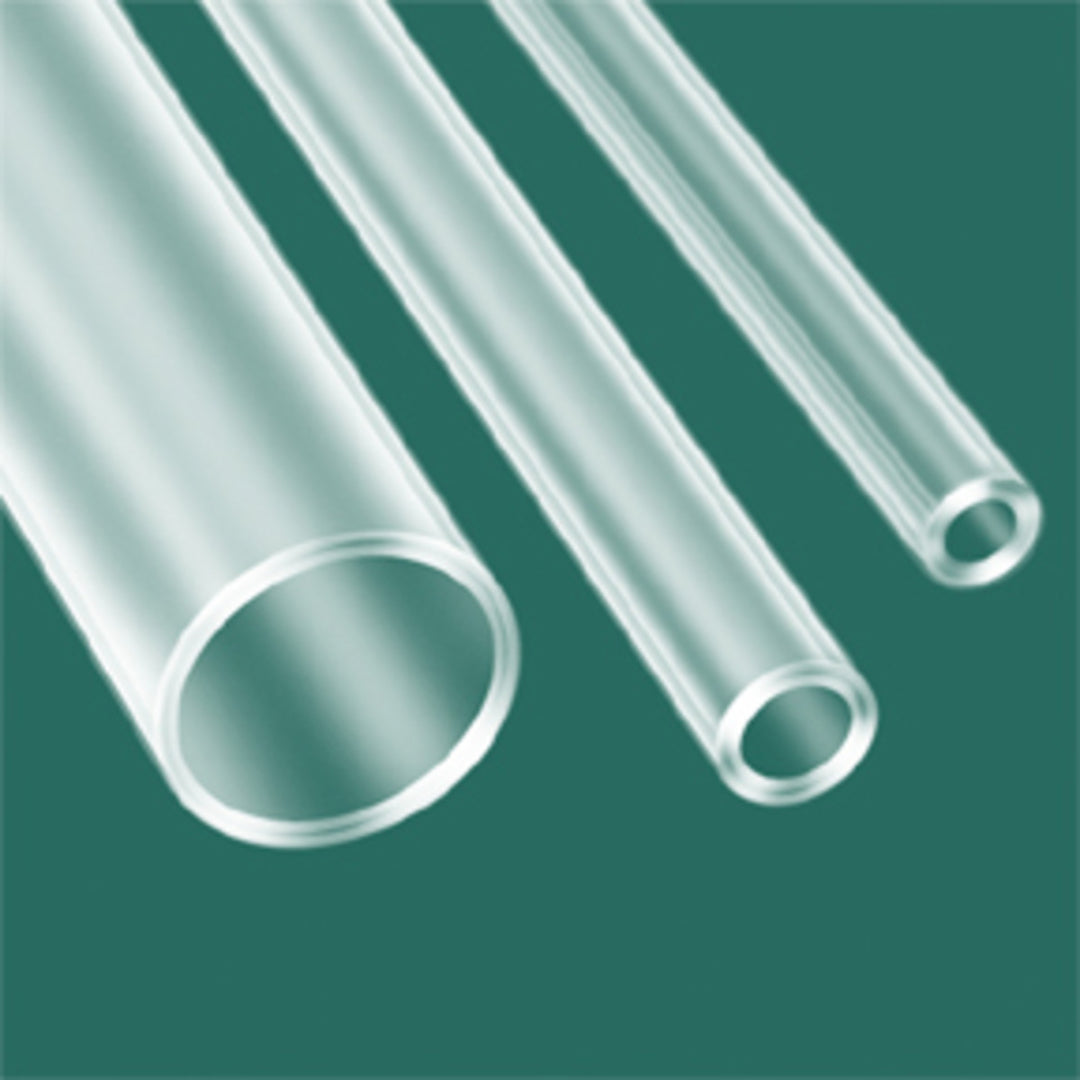

Fused Quartz Tubing - 65mm x 2.5mm

Item Name

Fused Quartz Tubing - 65mm x 2.5mm

SKU

ABRQT123

Description

Fused quartz tubing is produced from high-purity silica that is melted and formed into seamless tube stock for high-temperature, high-cleanliness applications. This large-diameter size features a 60.00 mm inside diameter and 65.00 mm outside diameter, creating a 5.00 mm wall that provides excellent crush resistance, thermal stability, and structural integrity for demanding scientific and industrial work. In scientific lampworking and apparatus building, large-bore quartz tubing is selected when you need to contain gases, liquids, or heat in a high-purity environment where thermal shock resistance and chemical inertness are critical. The thick wall and generous bore make this tubing ideal for major system components, reaction chambers, heat exchangers, and structural supports where durability and performance under extreme conditions are required. Supplied in a standard 4 foot length, it can be cut into sections, worked on a torch for joining and shaping, or used as straight stock for custom apparatus assembly.

How it is used

• Used as straight stock for large-bore, high-temperature tubing runs in scientific apparatus and laboratory systems
• Worked on a torch for joining sections, creating transitions, or forming custom connections in major assemblies
• Cut to length and fire-polished to remove sharp edges before integration into reaction chambers or heat systems
• Used as a structural support or containment vessel where the thick wall and large bore provide durability and thermal performance
• Incorporated into systems where rapid heating and cooling cycles occur and chemical resistance is essential

Dimensions

• Inner Diameter: 60.00mm
• Outer Diameter: 65.00mm
• Wall Thickness: 2.5mm
• Standard Length: 4'
