Item name:
Glass Torch Technologies Phantom 4 Stud 2 Stage Bench Torch Starter Kit
Item ID:
[GTT-BT-PHANTOM4S-KIT]
Item Description:

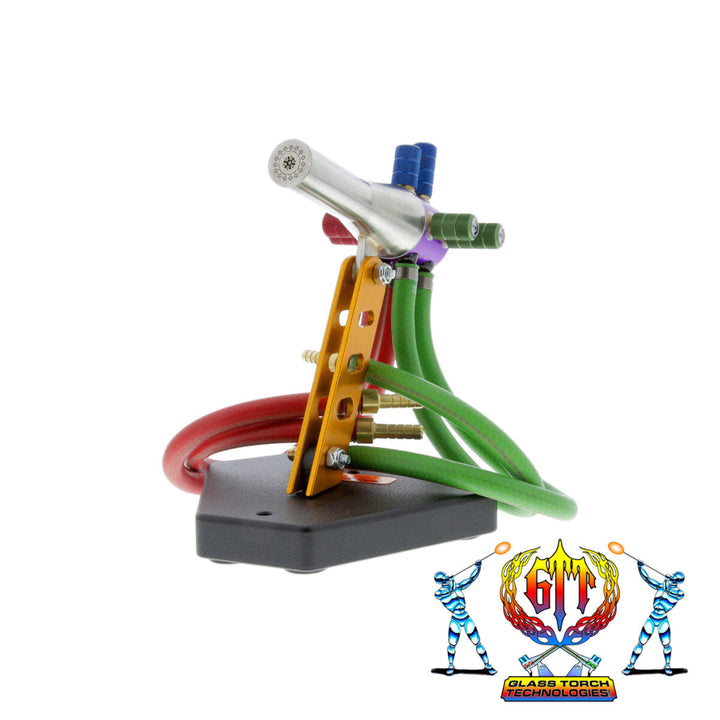

The Phantom torch is a 2 stage torch that uses the powerful Lynx 7 Jet for the center fire with a ring of 15 jets for the outer fire. This completely surface mix torch uses the patented Triple Mix technology to provide unparalleled flame chemistry for all types of glass. The 4 stud allows for the most flexibility for any setup to be run. The primary use is for a foot pedal to be used to turn the outer fire on and off with the outer fire valves preset to the desired setting. Also the 4 stud can make use of different oxygen sources such as a concentrator on the center fire and tanked oxygen on the outer fire. In this situation the fuel will "Y" together at the torch for simplicity. The 2 stud and 4 stud Phantom both work identically in function, the only change is the way the fuel and oxygen are supplied to the torch. A foot pedal is NOT required for a 4 stud torch, the hoses can "Y" back together to use a single fuel source and a single oxygen source with the option to use a foot pedal in the future. The Phantom 2 stud and 4 stud come with 1' of 3/16" hose and adaptors with filter screens to adapt to standard 1/4" ID grade "T" hose on each stud. The adaptors have a barb that the 1/4" ID grade "T" hose slides over and is clamped securely. The Phantom is mounted on a powder coated base that has holes for securing the base to the work table. Also included are complete instructions, a cleaning kit, and an instructional DVD.

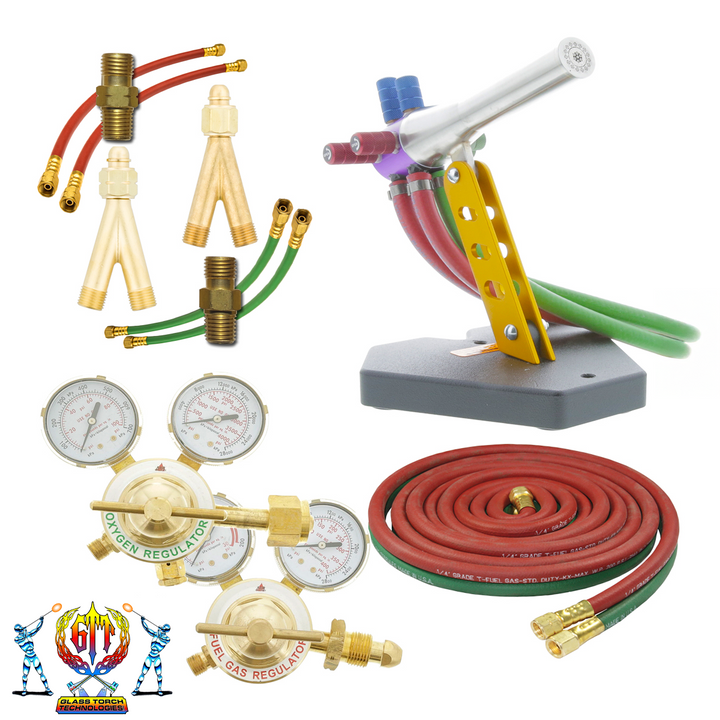

This kit includes:
- GTT Phantom 4S Bench Torch
- Oxygen Regulator
- Propane Regulator Alpha
- 12' Hose Set
- 4 Inlet to 2 Inlet Conversion Kit (4-2-Inlet-ConversionKit)
Item's Recommended Uses:
The Phantom is the first of the 2 stage Triple Mix torches in the lineup. It is great for soft or hard glass with the ability to produce many flame types from a soft bushy flame to a hard driving flame. The flame chemistry that is achieved with the Triple Mix technology has a wide range including a fuel rich reduction flame, a neutral flame, an oxygen rich oxidizing flame, and an over-oxidizing flame. These flame types make any type, color or effect of glass easy to work and manipulate.
How It's Sold:
This listing is sold as a set.
*Kits are all made to order so some components may not be in stock when ordered. If you are concerned about a particular item being in stock please either check the item in question product page or contact us to confirm whether the product is in stock. We're sorry for the inconvenience but we'll do our best to make sure that you're taken care of.
