Description:

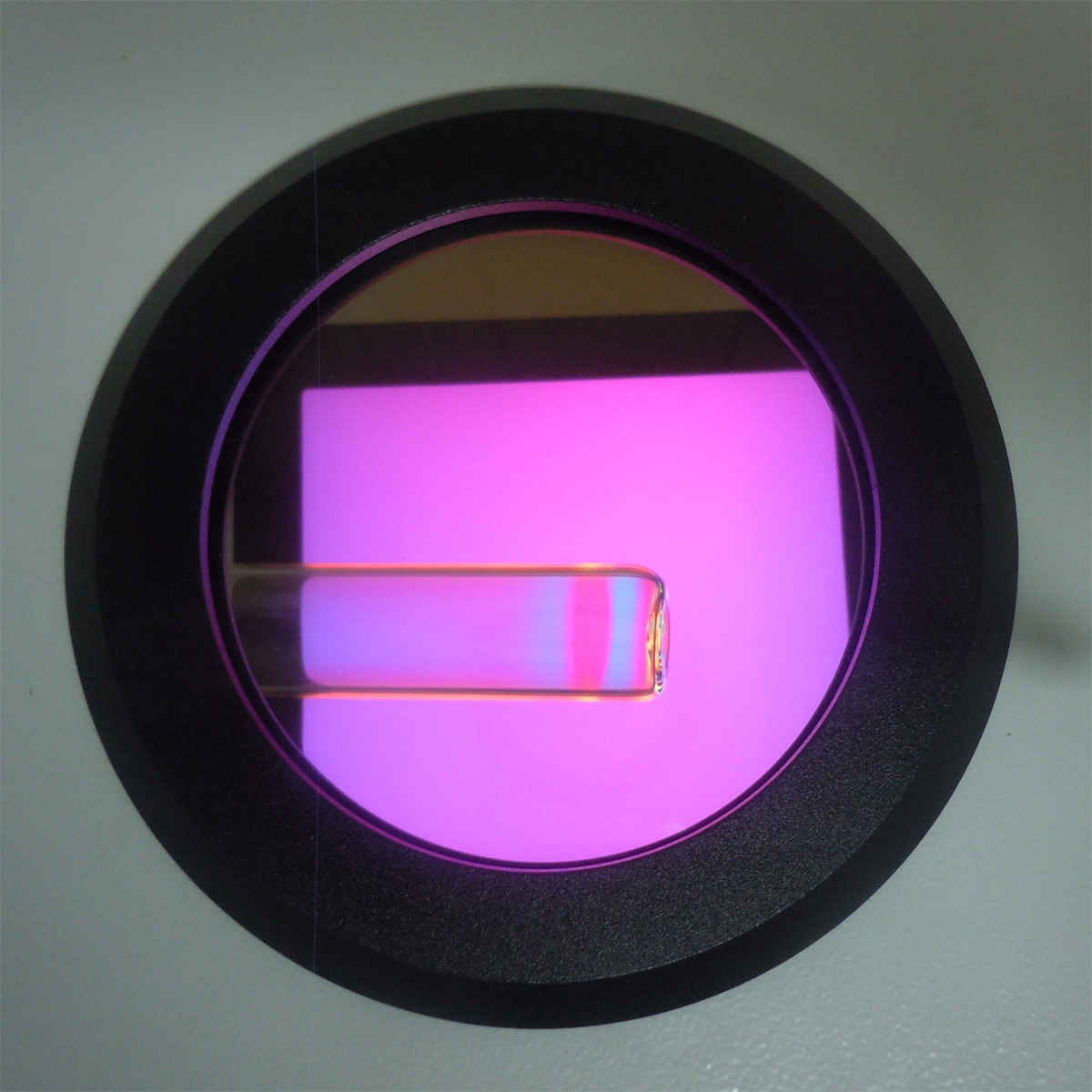

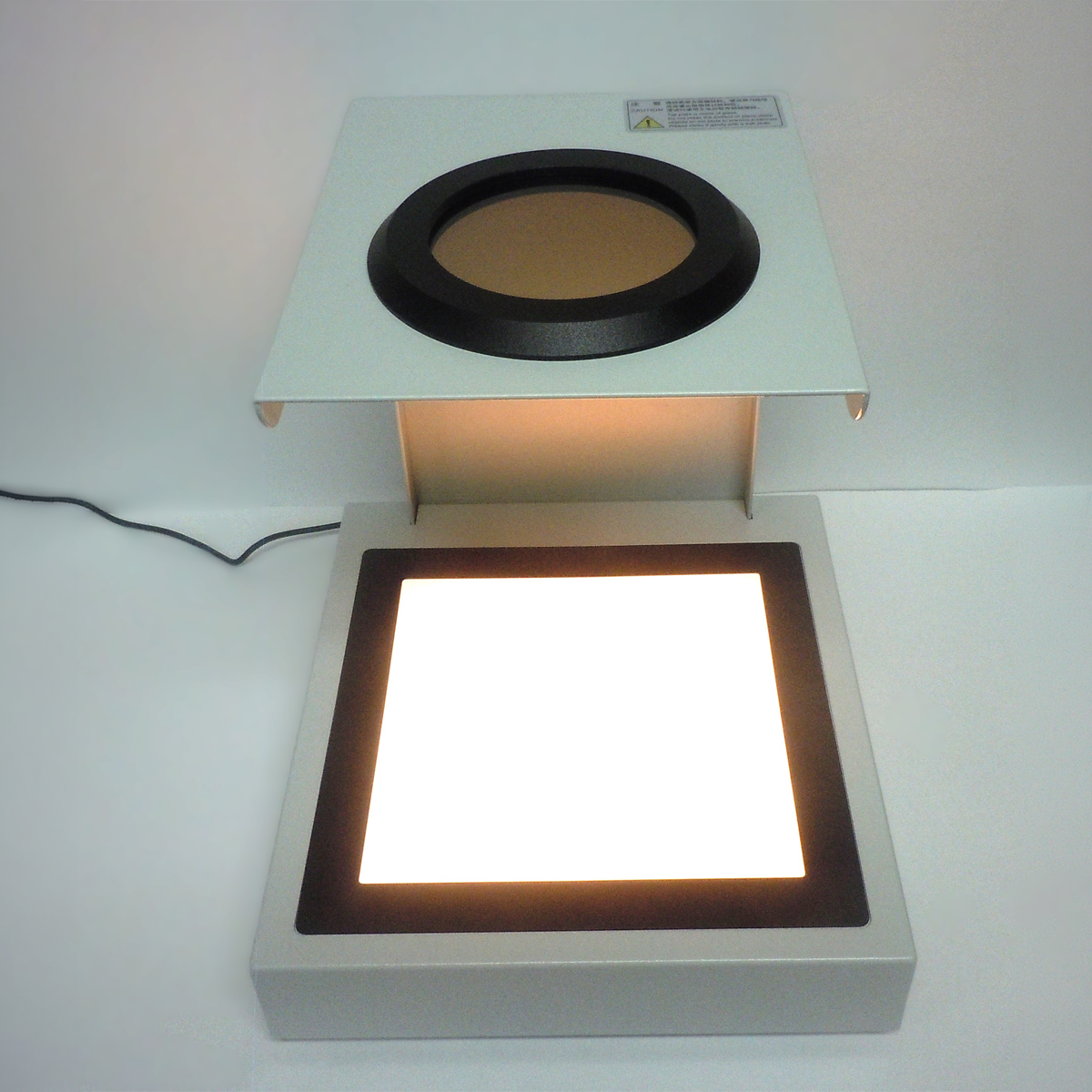

The Wale LED Polariscope is designed to inspect internal stress in transparent glass, plastic, and quartz materials. Featuring an energy-efficient white LED light source and precision full-wave plate, it provides clear, colorful stress patterns for accurate analysis.
220V OPTION ALSO AVAILABLE
-
- Voltage: 110V
- Light Source: White LED panel
- Viewing Distance: 9 inches
- Base Size: 8-inch square
- Top Viewer Diameter: 4 inches
- Overall Dimensions: 310 mm (W) × 285 mm (L) × 350 mm (H)
- Retardation of Full-Wave Plate: 565 nm
- Polarizer (Bottom): 200 mm × 200 mm
- Analyzer (Top): 100 mm diameter
