Description:

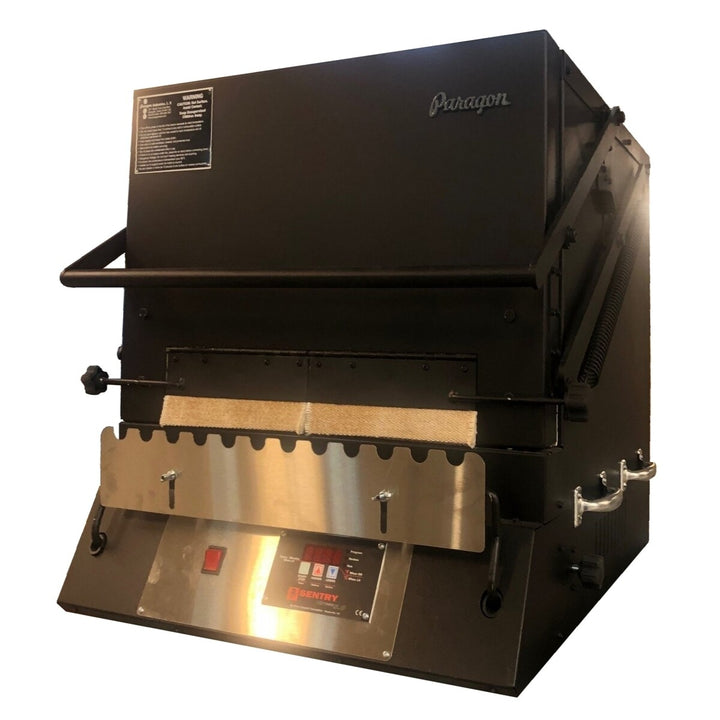

Paragon F240 Digital Kiln Top and Side Elements (240V)
Overview
The heating element is mounted in the side and back of the kiln, providing added safety measures, & aids with fusing & slumping glass. Also available with elements in the top wall, or both for an additional price.
Door Design for Annealing on a Punty Rod
The vertical-drop door is spring-loaded and has a smaller punty rod door to allow glass to anneal safely. A punty rod can be used to insert your Figurine (which can be up to 11" tall), and then will safely extend from the punty door, outside the fire chamber.
Specifications
- Max. Temperature: 1700F / 926C
- Amps: 20
- Phase: 1
- Watts: 4800
- Nema: 6-20P
- Breaker Size: 20amp
- Circuit: 12
- UL: N
- CE: N
- Control Type: Sentry Digital 3-key Glass Control
- Voltage: 240
- Hertz: 60
- Sides: 4
Chamber Interior
- 18.00" x 18.00" (D)
- Vol. 2.40 CU.FT.
Chamber Exterior
- 29.00”W x 34.50”D x 29.00”H
Shipping
- Ship Wt.: 288.00 Lbs.
