Item Name:
Covington Parts - Trim Saw Vise & Cross Feed Kit
SKU:
COVTSV159
Description:

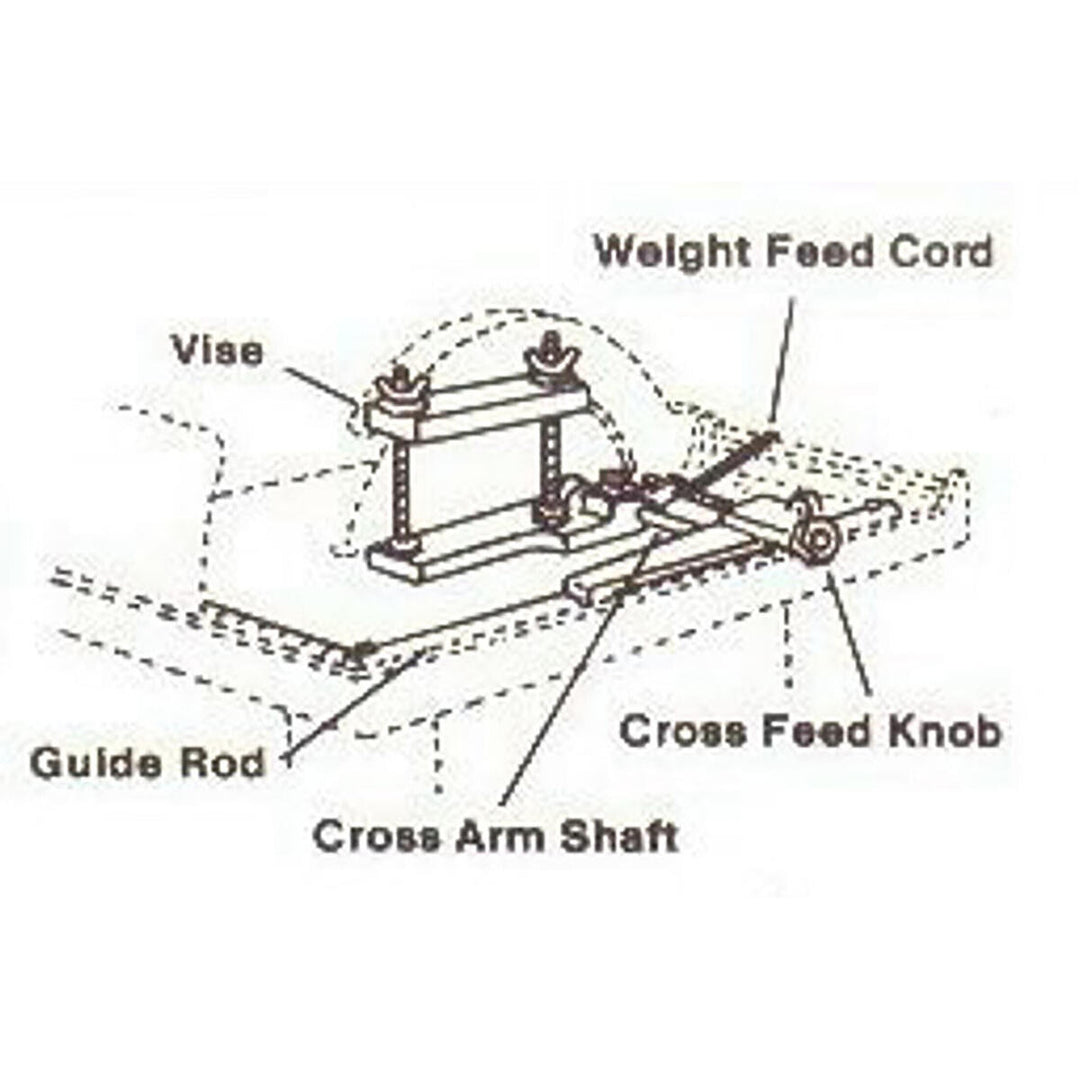

The Trim Saw Vise & Cross Feed Kit is a precision holding and feeding assembly designed to securely clamp small work samples and advance them smoothly into a trim saw blade for controlled slabbing. The vise jaws are built to hold up to a 3-1/2 inch rock and are designed to grip the work piece without the need for blocks or shims. The cross feed mechanism provides up to 3-1/2 inches of adjustment before the material needs to be repositioned. A no bind roller bearing and hook at the end of the cross arm shaft helps maintain a smooth, consistent feed and helps prevent the work piece from riding up into the blade. This kit includes a vise assembly, cross arm shaft, cross feed, knob, weight feed cord, and scales.
How it is used:
- Secure the work piece in the vise jaws for stable holding during cutting.
- Use the cross feed adjustment to advance the material into the blade in controlled increments.
- Maintain a smooth feed rate with the cross arm shaft design to support consistent cuts.
- Reposition the work piece in the vise once the cross feed travel has been used.
- Use for preparing small slabs and samples that can later be shaped, ground, or incorporated into glass and lapidary-related projects.
